Belt & hybrid UV printers

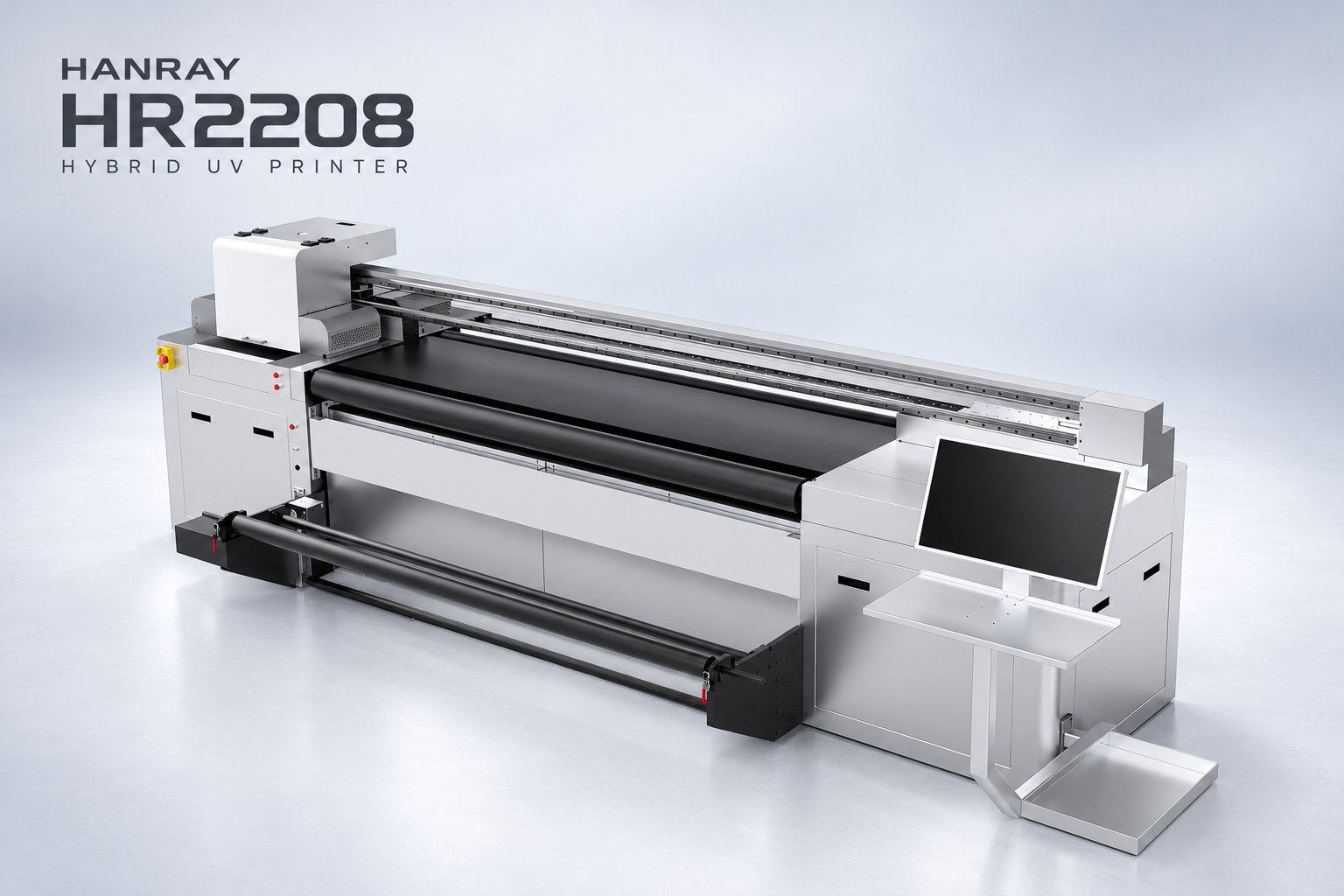

HR2208E Hybrid UV Printer
Belt platform: roll-to-roll media and rigid boards on one machine, 2,200 mm print width.
View specificationsIndustrial UV digital printing systems
Large-format UV printers built in our own factory
Hanray designs and manufactures large-format UV flatbed and belt printers for sign makers, interior decor printers and industrial print shops. Chassis, gantry and sheet-metal work are produced in house, so machine format and configuration are quoted against your substrate and production volume.
2,200 mm
Print width — HR2208E belt platform
2,500 mm
Print width — HR2513G flatbed
1 unit
Minimum order quantity
5 × 8 m
Custom formats quoted to order
HR2208Hybrid UV printer
Roll-to-roll and rigid board Factory direct
01Print platforms
Two UV platforms, one engineering base
Pick the format that matches the substrates you print. Both platforms are assembled in our own workshop and are quoted with the printhead, ink set and RIP configuration your production needs.
UV flatbed printers

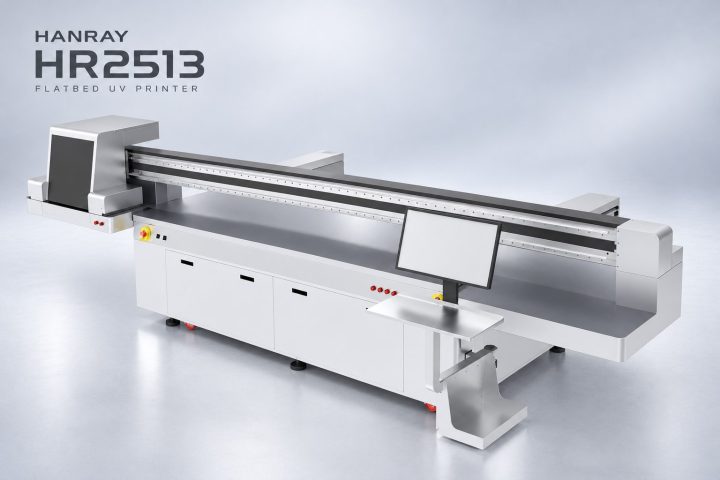

HR2513G UV Flatbed Printer
Flatbed platform for rigid substrates, 2,500 mm print width.
View specifications02How the machines are made
Built in house, sold factory direct
Hanray runs its own machining centre and sheet-metal fabrication shop. That is where the machine structure begins, which is also why a single unit and a custom format are both normal orders.
Machining and sheet metal, both in house
A machining centre and a sheet-metal fabrication shop under the same ownership, rather than a machine assembled from bought-in frames.
Factory-direct pricing
Your quotation comes from the workshop that builds the printer, with no trading layer in between.
One unit is a normal order
There is no container minimum. A single machine, or a repeat production unit, is quoted the same way.
Custom formats to 5 × 8 m
Non-standard and large-format builds are quoted from your substrate, maximum print size and daily volume.
Studio animation
03Applications
Substrates the platform is configured for
UV printing cures instantly under LED, so the same machine can run flexible roll media and rigid boards. These are the six substrate groups Hanray printers are most often specified for.
Soft signage & lightbox fabric
Backlit textile, banner and stretch-frame graphics printed on roll media.
Glass & architectural film
Decorative and privacy graphics for interior glass, partitions and facades.
Ceramic tile & wall panels
Direct printing on tiles and panels for feature walls and wet areas.
Acrylic & signage
Rigid acrylic, foamboard and composite panels for retail and wayfinding.
Metal & specialty substrates
Coated metal, film and low-volume industrial parts with primer and white ink.
Home décor & customisation
Short-run wall art, furniture panels and one-off printed pieces.
04Technology
What is actually inside the machine
The specification sheet is the honest description of a printer. These are the subsystems specified across the Hanray range, and the two flagship machines side by side.
Magnetic-levitation motion
Hanray belt printers (2208 / 2512 / 3318) and flatbed printers (1216 / 2513 / 3220) are built on a magnetic-levitation motion platform.
Water-cooled LED UV curing
Ink is cured by a water-cooled LED UV system, which keeps heat away from thin film and heat-sensitive boards.
Epson, Ricoh or Konica printheads
Printhead configuration is quoted per machine: Epson i3200, Ricoh G5 or G6, or Konica Minolta 1024i / 1024A.
Extended-gamut ink set
CMYK plus light cyan, light magenta, light black, light-light black, white and varnish, in flexible, neutral or rigid UV ink.
| Specification | HR2208E Hybrid UV Printer | HR2513G UV Flatbed Printer |
|---|---|---|
| Model | HR2208E | HR2513G |
| Print width | 2200 mm | 2500 mm |
| Print resolution | 720 × 900 dpi, 720 × 1200 dpi, 720 × 1800 dpi | 720 × 900 dpi, 720 × 1200 dpi, 720 × 1800 dpi |
| Print speed | 20–30 m²/h with Epson i3200; 20–30 m²/h with Ricoh G6 | 20–30 m²/h with Epson B200; 20–30 m²/h with Ricoh G6 |
| Ink colours | C M Y K + LC Lm + LK LLK + W + V | C M Y K + LC Lm + LK LLK + W + V |
| Printheads | Epson i3200, Ricoh G5 / G6, Konica Minolta 1024i / 1024A | Epson B200, Ricoh G5 / G6, Konica Minolta 1024i / 1024A |
| Curing system | Water-cooled LED UV | Water-cooled LED UV |
| Ink type | Imported eco-friendly UV ink — flexible, neutral, rigid | Imported eco-friendly UV ink — flexible, neutral, rigid |
| Power supply | AC 220 V, 50–60 Hz, 6 kW maximum | AC 220 V, 50–60 Hz, 6 kW maximum |
| Machine size | 4000 mm (L) × 1870 mm (W) × 1300 mm (H) | 4482 mm (L) × 2160 mm (W) × 1425 mm (H) |
| Machine weight | 1500 kg | 1500 kg |
| RIP software | Ruiyin, PrintFactory, ColorGate RIP, PhotoPrint | Ruiyin, PrintFactory, ColorGate RIP, PhotoPrint |
Values as published in the factory specification sheets. Configurations vary by printhead and RIP; final specification is confirmed on the quotation.
05Model range
Other formats in the range
Larger belt formats, additional flatbed sizes and fully custom builds. Configurations are quoted per model because printhead and ink options change with the substrate.
Belt & hybrid UV printers
Large-Format Belt UV Printer Series — HR2512 / HR3318
Larger formats of the magnetic-levitation belt platform, quoted per machine.
View specifications
UV flatbed printers
UV Flatbed Printer Series — HR1216 / HR3220
Smaller and larger formats of the magnetic-levitation flatbed platform.
View specifications

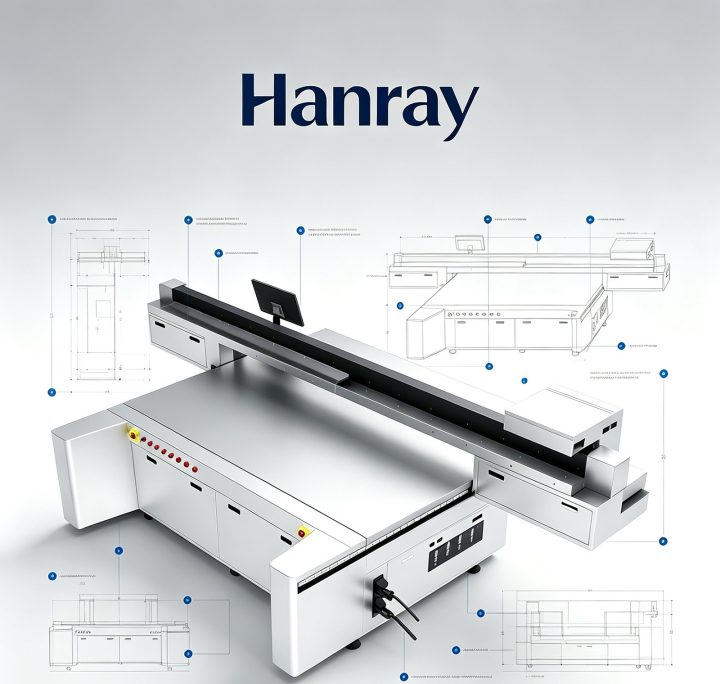

Custom & large-format systems
Custom Large-Format UV Printing System (up to 5 × 8 m)
Non-standard and super-wide builds, quoted from your substrate and print size.
View specificationsTell us what you print, and we will quote the configuration
Send your substrate, maximum print size, daily output and the finishing you need. You will get a machine configuration and a factory-direct price, not a catalogue page.
